Tuyere coke sampler

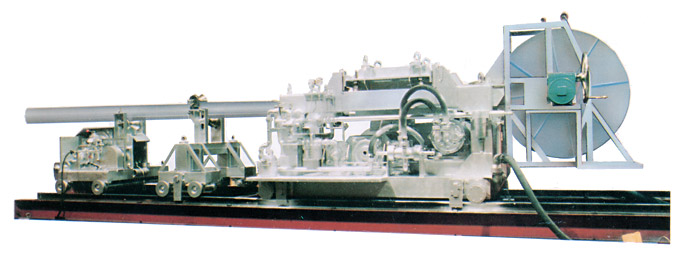

Photo 2
This device inserts steel pipe from tuyere part of blast furnace, and takes coke samples up to the furnace core. It is entirely powered by compressed air, and powerful striking machine is installed.


Weight (kg) 17,000
Thrust (kg) 10,000
Hammer model KDB-300
Sampler tube (A) 250
Drive motor (PS) 12
Air consumption (m³ / min) 32
