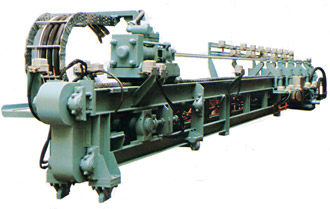

Blast furnace shaft area sampler
This device inserts a triple pipe into the furnace core at blast furnace shaft area using water-cooling method, and samples the temperature and gas inside the furnace.
The operation is done by electrical remote control, and insertion, hammer, extraction (withdrawal), suspension are entirely powered by compressed air.
Specification
| Weight (kg) | 7,000 |
|---|---|
| Hammer feed length (mm) | 11,500 |
| Insertion thrust (ｔ) | 9.5 |
| Insertion pipe diameter (mm) | 48.6Φ |
| Air motor (PS) | 12 |
|---|---|
| Cutter model | MCB-80 |
| Air consumption (max) (m³ / min) | 17 |
