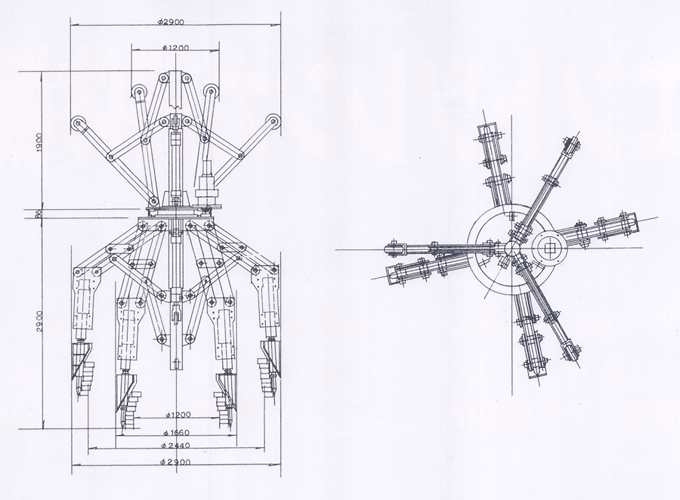

Chimney brick dismantling machine

Chimney brick dismantling machine

Specification

Weight 3,000kg
Overall length 4,886mm
セリ矢min diameter Φ1,660mm
セリ矢max diameter Φ2,900mm
Hydraulic breaker model TNB-3型 4台
Oil pressure 140kg/cm²
Oil content 105ℓ /min
Outrigger min diameter Φ1,200mm
Outrigger max diameter Φ1,660mm
Outrigger leg 3
Angle of traverse 90°
