Drifter

Drifter

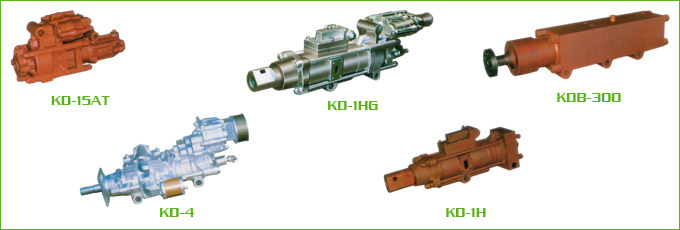

KD-1ST Drifter
KD-1ST Drifter rotates separately from the strike mechanism. Rotary motor torque is large, allowing the use of large diameter bit.
KD-4 Drifter
KD-4 Drifter was developed for taphole opening, and is capable of both forward and backward (reverse) strike with 1 cylinder.
KD-1HG Drifter
KD-1HG Drifter has strong strike mechanism and can be used for both crushing and boring (drilling, punching).
KD-1H Hammer
KD-1H Hammer only has strike mechanism and is capable of both forward and backward strike with 1 cylinder.
KDB-300 Hammer
KDB-300 Hammer only has strike mechanism and is capable of both forward and backward strike. It exerts strong striking power and is used for blast furnace sampler. Rotary motor can be installed.
To Page Top　↑

Specification

Model KD1-SAT KD-4 KD-1HG KD-H KDB-300
Weight (kg) 300 350 560 400 1,600
Overall length (mm) 931 1,252 1,420 1,090 2,000
Cylinder diameter (mm) 140 180 200 200 300
Piston stroke (mm) 90 85 115 115 200
Number of strikes (blow / min) 1,650 2,000 600 600 540
Striking force (kg-m) 32 28 50 50 200
Hammer air consumption (m³ / min) 9.0 7.0 11.0 11.0 21
Reverse striking force (kg-m) - 28 50 50 120
Motor rotation (rpm) 0～230 0～290 0～150 -
Torque (kg – m) 60 50 100 -
Motor air consumption (m³ / min) 0～12 0～5.5 0～12
