Tuyere raceway measuring device

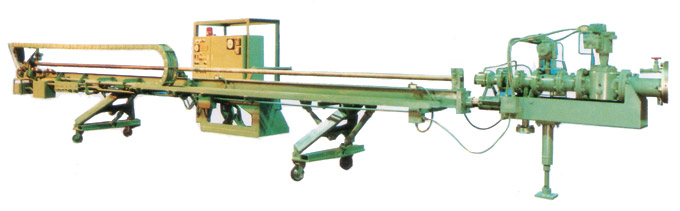

Photo 01
This device inserts cooling tube from tuyere part of blast furnace during operation, for raceway depth measurement and gas sampling. It is operated electrically by remote control.

Specification

Weight (kg) 2,400
Insertion depth (mm) 2,500
Drive motor (KW) 0.75
Operating power source (V) 100
Insertion tube diameter (mm) 48.6Φ
