Kurita Sakuganki K.K.
KURITA

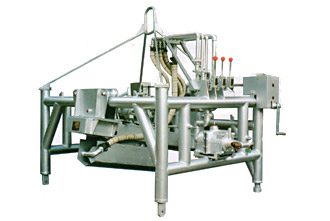

Residual pig iron removal (discharge) taphole opener
This equipment opens 開坑（開孔？）residual pig iron accumulated in the large vat (vessel) and drains the molten iron. All devices are put together compactly so as to evacuate immediately after tapping, and heat resistance countermeasures are taken as well.
Installation method and operating position are decided according to the shape of residual pig iron vat (vessel). It may be operated by remote control.
仕様
| Weight (kg) | 1,500 |
|---|---|
| Air consumption (m³ / min) | 17.0 |
| Bit diameter (Φmm) | 50～150 |
| Lot diameter (mm) | 32Φ or 32H |
|---|---|
| Drifter slider length (mm) | 1,000～2,000 |
All Rights Reserved. ©2013 Kurita Sakuganki K.K.
